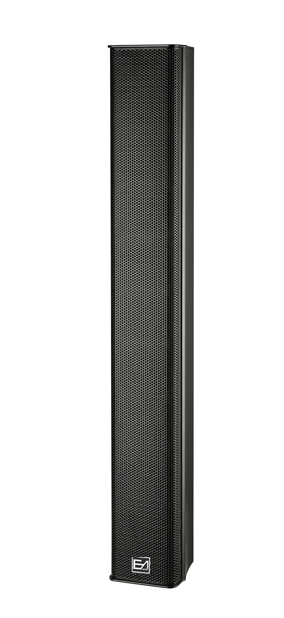

• aluminum alloy die-casting box body, surface sprayed with imported abrasive baking paint, • designed the hole position of the wall mounting bracket, improved SPL and reduced the width of vertical radiation wave flap

, as an excellent increased the proportion of direct sound and reflections, suitable for reverberation large fixed installation place of music and voice processing, applied in the lecture hall, multi-function hall, music bar, shadow K (cinema), conference rooms and other places, to be able to show excellent language definition, according to the site can be point-to-point processing sound field sound.

WRMS 450 power is recommended

Rated power W 270

Instantaneous power IEC 268-5w 540

Impedance ohm 8

Frequency response @-6db 150hz-20khz

Full frequency unit inch 9 x 80mm-1 voice coil sensitivity (@1w /1m) dB 96

Maximum sound pressure continuous/peak (bi-amp) dB 125/128

Diffusion Angle H V 15 ° 140 ° x x

Frequency division point frequency kHz 3

High pass filtering is recommended for 150hz-24db octave

Enter the connection 4 x Euroblock

Volume (width x height x depth) mm 115x826x125

Net weight: 8.6Kg
